Rectangular RGB Metalens

Leading Edge Single Layer Meta Lens For Color Imaging

Leading edge mass producible meta lens using 12'' Glass Wafer DUV Immersion Photolithography Manufacturing Process. Designed for color imaging or non-contact fingerprint sensing.

Specifications

Substrate Specifications

Length

Width

Thickness

Substrate Material

Metalens Specifications

Pattern Material

RGB Target Wavelength

Minimum CD (Pillar Diameter)

Pillar Height

Metalens Size (Effective)

EFL (Focal Length)

Field Of View (H×V)

Front Aperture (Target)

Image Area

5MP

7.94 mm

6.34 mm

0.775 ± 0.02 mm

Glass

SiN

635, 540, 450 nm ± 5 nm

120 nm

650 nm

5.7 × 5.66 mm

2.46 mm

120 × 45 Degrees

0.7 mm

5.737 × 4.312 mm

12MP

10 mm

0.775 ± 0.02 mm

Glass

TiO₂

635, 540, 450 nm ± 5 nm

100 nm

650 nm

7.6 × 7.07 mm

4.02 mm

100 × 34 Degrees

1.6 mm

7.07 × 6.2 mm

Related Products

Metalens Color Camera Module

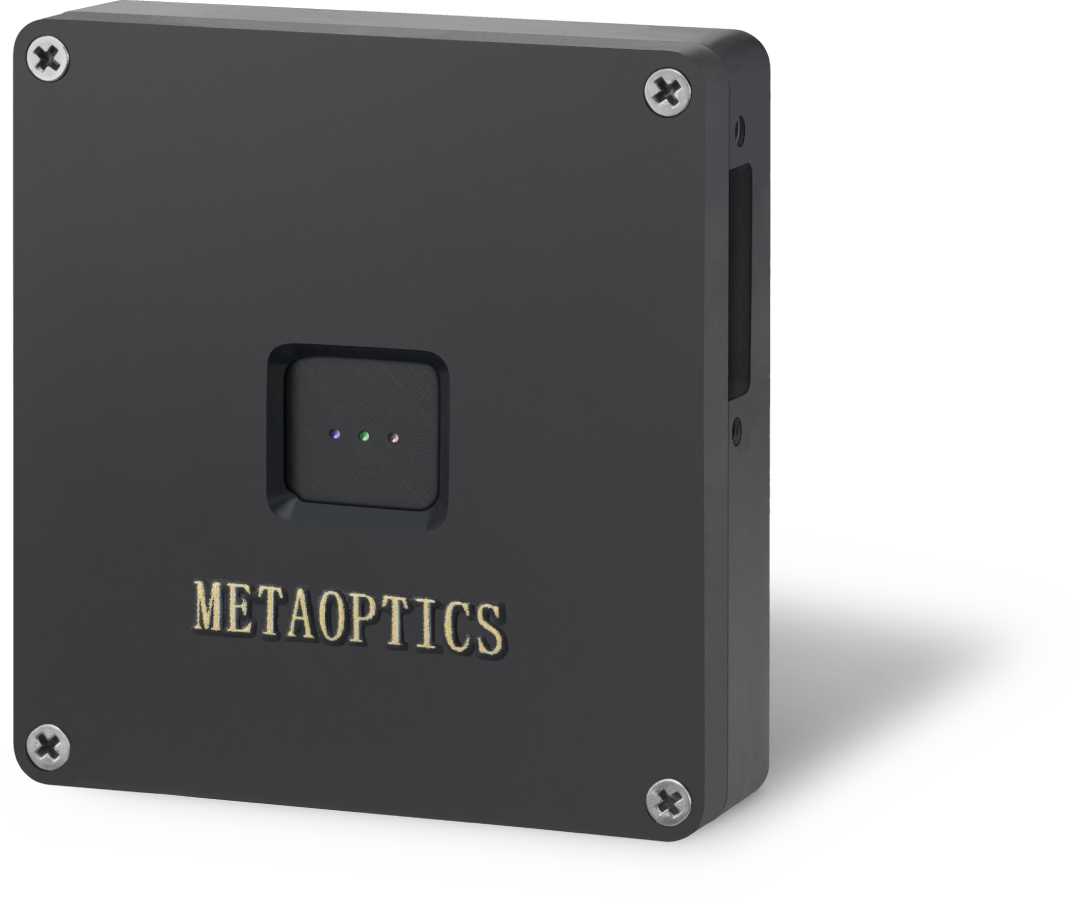

IoT Rectangular Metalens Color Camera
